Project

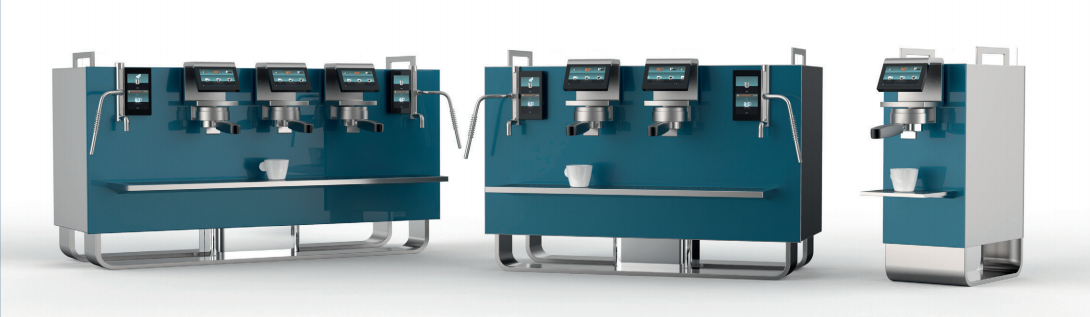

The Plana series is a revolutionary solution for espresso coffee machines, based on individual and autonomous modules for both coffee dispensing and for producing hot water infusions. Heating is extremely fast.

The cold machine only takes 5 minutes to reach the optimal temperature for extracting the espresso. This feature allows you to completely shut off the machine during unused phases (eg, daily closing of the exercise).

An innovative study of the dispensing unit (both the exchanger and the head) and advanced electronic control of all the extraction parameters, both of our design, result in a perfect and repeatable infusion in each cup, while maintaining every single characteristic.

Plana owes its precision and versatility to the ability to customize the infusion temperature (both inside the exchanger and the dispensing unit), pressure, flow rate (both pre-infusion and dispensing) and calibration of milliliters in cup. The multiple combinations of prangles and their results, permitted by Plana's technological ductility, are unmatched in any traditional espresso machine.

All of these parameters can be set independently of each group, allowing you to find the best extraction conditions with any type of coffee. In addition, the system provides two operating modes, the first being the classic based on constant pressure.

The second, on the other hand, operates through the precise constant flow of constant flow, which allows adaptation within certain limits, to the degree of coffee grinding. In both cases, the system provides a visual indication of the degree of grinding on the display, indicating how to intervene on the grinder to always have the powder at the correct granulometry.

Each group delivers up to 150 ml per minute, at constant temperatures, without any time limit, allowing it to meet all the needs, even the most crowded ones. The infusion temperature can be set from 83 ° C to 95 ° C at a few seconds. Each group can work at a different temperature, so they are excellent machines for very valuable products or for degustations.

Plana has an easy and intuitive use as each set has a TFT color LCD display with color touch screen. Groups heat up the water needed for each coffee (25ml), keeping the consumption within minimal levels.

The steam unit has a volume of about 1 liter and it is possible to change the working pressure by obtaining a steam more or less humid. The hot water group is directly connected to the water network. The volume of this group is 500cc of water are not in contact with the electrical resistance. This system allows the use of water that does not detect any alterations in the health and hygiene.

plana-macchine-caffè-professionali
